A Brief Introduction to Quantum Key Distribution (with Python Code)

I have included examples of Python Code running on ARM Chips and a use case to protect communication channels between satellites. I have given examples of cube satellites.

In the realm of cybersecurity, the quest for unbreakable encryption has led to the development of Quantum Key Distribution (QKD), this tried and tested approach that leverages the principles of quantum mechanics to ensure the secure exchange of encryption keys. This technical blog post delves into the intricacies of QKD, elucidating its step-by-step process with a focus on the roles of the participants: Alice (the sender), Bob (the receiver), and the potential eavesdropper, Evil Eve. Let’s embark on a journey into the quantum realm of secure communication.

Introduction to Quantum Key Distribution

Quantum Key Distribution is a protocol that enables two parties to produce a shared random secret key, known only to them, which can then be used to encrypt and decrypt messages. What sets QKD apart from classical key distribution methods is its foundation in quantum mechanics, which ensures that any attempt at eavesdropping can be detected.

The Quantum Principles Behind QKD

QKD is built on two key quantum mechanics principles:

1. Quantum Uncertainty Principle: The act of measuring a quantum system inevitably alters its state. This means that an eavesdropper cannot measure the quantum bits (qubits) being exchanged without leaving detectable traces of their interference.
2. Quantum Entanglement: A state where particles become interconnected, and the state of one (no matter how far apart) can instantaneously affect the state of the other. This property is used in some QKD protocols to ensure security.

The Step-by-Step Process of Quantum Key Distribution

The most commonly referenced QKD protocol is the BB84 protocol, developed by Charles Bennett and Gilles Brassard in 1984. Here’s how it works, simplified:

  1. Preparation

Alice’s Role: Alice prepares a sequence of qubits in random quantum states. She uses two sets of bases to encode her qubits, commonly represented as rectilinear (+) and diagonal (x). Each qubit represents a bit of information (0 or 1) encoded in one of these bases.

2. Transmission

Alice to Bob: Alice sends the sequence of qubits to Bob over a quantum channel. This channel is susceptible to eavesdropping, but thanks to quantum mechanics, any interference by Eve will be detectable.

3. Measurement

Bob’s Role: Without knowing which bases Alice used for each qubit, Bob randomly chooses bases to measure the incoming qubits. This results in Bob correctly guessing the base about half the time, aligning with Alice’s choices, and incorrectly the other half.

4. Basis Reconciliation

Public Discussion: Alice and Bob then use a public channel to discuss which bases were used for each qubit without revealing the qubit’s state. They discard the results where their bases do not match.

5. Eavesdropping Detection

Quantum Mechanics at Play: If Eve attempts to intercept and measure the qubits, her actions will alter their states due to the quantum uncertainty principle. Alice and Bob can detect her presence by comparing a subset of their remaining bits. A higher error rate than expected indicates an eavesdropper’s interference.

6. Key Generation

Final Secret Key: After ensuring no eavesdropping has occurred, Alice and Bob use the remaining, correctly matched bits as their shared secret key. This key is then utilized for encrypting and decrypting messages using classical cryptographic methods.

The Role of Evil Eve

In the context of QKD, Eve represents potential vulnerabilities and the omnipresent threat of eavesdropping. The brilliance of QKD lies in its ability to turn quantum mechanics into a security feature, where the act of eavesdropping itself is made detectable. Eve’s presence is revealed through the disturbance of the quantum states, ensuring Alice and Bob can take measures to secure their communication if they suspect a breach.

Quantum Key Distribution represents a paradigm shift in secure communication, offering a method to detect eavesdropping attempts and guarantee the confidentiality of the exchanged keys. As quantum computing advances, QKD stands as a bulwark against potential quantum threats, ensuring that our communications remain secure in the quantum era. The journey from Alice to Bob, with Eve lurking in the shadows, encapsulates the ongoing battle for cybersecurity and the quantum mechanics-powered shield that QKD provides.

To demonstrate Quantum Key Distribution (QKD) using the BB84 protocol with a simple Python example, we’ll break down the process into code snippets that represent each step of the protocol. This example will be a simplified simulation, focusing on the key aspects of preparation, transmission, measurement, basis reconciliation, eavesdropping detection, and key generation without delving into the complexities of actual quantum computation.

Step 1: Preparation

Alice prepares a sequence of qubits encoded in two bases (rectilinear `+` and diagonal `x`). Each bit of her secret key will be encoded in one of these bases randomly.

import numpy as np
# Constants
BASES = ['+', 'x']
BITS = ['0', '1']
# Alice's preparation
def prepare_qubits(length=10):
"""Prepare qubits in random states."""
secret_key = np.random.choice(BITS, length)
bases = np.random.choice(BASES, length)
return secret_key, bases
# Example
alice_secret_key, alice_bases = prepare_qubits(10)
print(f"Alice's Secret Key: {alice_secret_key}")
print(f"Alice's Bases: {alice_bases}")

Step 2: Transmission

Alice sends these qubits to Bob. This step is conceptual in our simulation, as we’re not actually sending qubits over a quantum channel.

Step 3: Measurement

Bob measures the incoming qubits using randomly chosen bases.

# Bob's measurement
def measure_qubits(alice_bases, length=10):
"""Bob measures the qubits in random bases."""
bob_bases = np.random.choice(BASES, length)
return bob_bases
# Example
bob_bases = measure_qubits(alice_bases, 10)
print(f"Bob's Bases: {bob_bases}")

Step 4: Basis Reconciliation

Alice and Bob discard the bits where their bases did not match.

# Basis reconciliation
def reconcile_bases(secret_key, alice_bases, bob_bases):
"""Discard bits where bases do not match."""
matching_bases_indices = alice_bases == bob_bases
final_key = secret_key[matching_bases_indices]
return final_key
# Example
final_key = reconcile_bases(alice_secret_key, alice_bases, bob_bases)
print(f"Reconciled Key: {final_key}")

Step 5: Eavesdropping Detection

Alice and Bob check for eavesdropping by comparing a subset of their bits.

# Eavesdropping detection
def detect_eavesdropping(final_key):
"""Simulate eavesdropping detection by checking error rate."""
sample_size = len(final_key) // 2 # Use half the bits for checking
sample_indices = np.random.choice(range(len(final_key)), sample_size, replace=False)
sample = final_key[sample_indices]
# Simulate error detection (In real scenario, they compare this subset)
error_rate = np.random.random() # Random error rate for demonstration
if error_rate > 0.1: # Assume any error rate above 10% indicates eavesdropping
print("Eavesdropping detected.")
print("No eavesdropping detected.")
return final_key[sample_indices == False] # Return the unused half for the final key
# Example
secure_final_key = detect_eavesdropping(final_key)
print(f"Secure Final Key: {secure_final_key}")

This code provides a basic framework for understanding the BB84 Quantum Key Distribution protocol’s steps. In a real-world quantum computing environment, qubit preparation, transmission, and measurement would involve quantum mechanical operations and quantum states. This simulation helps illustrate the conceptual flow of the protocol, demonstrating the revolutionary security features enabled by quantum mechanics principles.

In this section, I am discussing how this code can be run on a low-power ARM Chip A1 from Ampere Computing.

Running the provided Python example of a Quantum Key Distribution (QKD) simulation on an Ampere A1 ARM chip or any ARM-based environment involves ensuring that the necessary Python environment and dependencies are set up correctly. The Ampere A1 ARM chip, being a powerful and efficient processor, is well-suited for a wide range of computing tasks, including simulations like this one. Here’s a step-by-step guide on how you can run the QKD simulation example on an Ampere A1 ARM chip:

Step 1: Setting Up the Python Environment

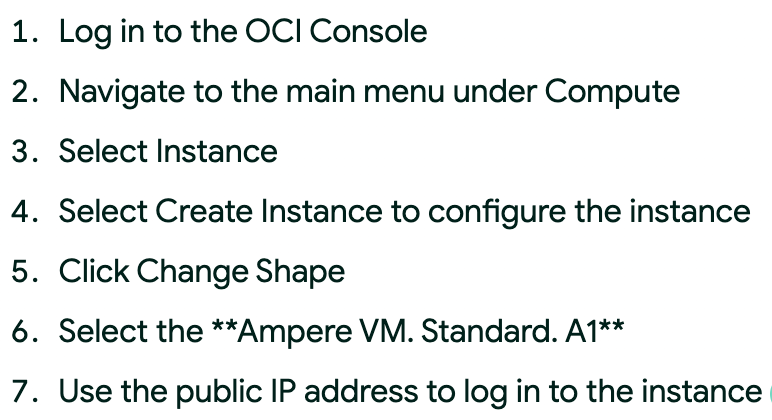

  1. Access the Terminal: Log in to your system running on an Ampere A1 ARM chip. #oraclecloudinfrastructure A1 —
OCI Documentation

2. Install Python (if necessary): Most modern Linux distributions come with Python pre-installed. If not, you can install Python using your distribution’s package manager. For example, on Ubuntu or Debian-based systems, you can use:

sudo apt-get update
sudo apt-get install python3

3. Set Up a Virtual Environment (Optional): It’s a good practice to use a virtual environment for Python projects. This keeps dependencies required by different projects separate. Install the virtual environment package and create a new environment:

sudo apt-get install python3-venv
python3 -m venv qkd-env
source qkd-env/bin/activate

Step 2: Install Necessary Python Packages

For this QKD simulation, we only rely on NumPy, a fundamental package for scientific computing with Python. Install NumPy within your environment:

pip install numpy

Step 3: Prepare the QKD Simulation Code

1. Create a Python Script: Open a text editor, copy the Python code provided in the previous sections into a new file, and save it as `qkd_simulation.py`.
2. Ensure Execution Permissions: Make sure the script is executable. In the terminal, navigate to the directory containing your script and run:

chmod +x qkd_simulation.py

Step 4: Run the Simulation

Execute the script with Python:

python3 qkd_simulation.py

This command runs your QKD simulation, which includes generating a secret key, simulating the transmission of qubits, and detecting any potential eavesdropping.

Additional Tips

Performance Considerations: The Ampere A1 ARM chip is designed for efficiency and scalability. While this QKD simulation is not computationally intensive, the Ampere A1’s architecture is well-suited for more complex simulations and workloads, particularly those benefiting from parallel processing.
ARM Compatibility: Most Python packages, including NumPy, are compatible with ARM architectures. However, for more complex projects requiring additional dependencies, it’s a good idea to check package documentation for ARM compatibility.

By following these steps, you can successfully run the QKD simulation or similar Python scripts on an Ampere A1 ARM chip, leveraging its efficiency and performance for your quantum computing simulations and other computational tasks.

In this last section, I am discussing how I can use this technology to establish secure channels between eight cube satellites having an ARM-based computer in each of the satellites. This is a hypothetical scenario.

Implementing Quantum Key Distribution (QKD) to establish secure channels between eight cube satellites equipped with ARM-based computers presents a fascinating and complex challenge, blending cutting-edge quantum communication with space technology. The integration of QKD in such a scenario involves several key components and considerations to ensure secure, inter-satellite communication. Here’s a conceptual overview of how this could be achieved:

1. Quantum Source and Detector Hardware

Onboard Quantum Equipment: Each satellite must be equipped with quantum communication hardware capable of generating, sending, and receiving quantum bits (qubits). This includes sources of entangled photons, quantum transmitters, and single-photon detectors. Developing miniaturized, low-power quantum communication hardware compatible with the power and space constraints of cube satellites is crucial.

2. Classical and Quantum Communication Links

Inter-Satellite Links (ISLs): Secure quantum channels rely on both quantum and classical communication links. The quantum links are used for the transmission of qubits, while classical links are used for public but authenticated communication necessary for the QKD protocol steps such as basis reconciliation and eavesdropping detection.
Optical Communication: Given the nature of cube satellites and the challenges of establishing reliable communication links in space, optical communication systems (using lasers for classical and quantum channels) are preferable due to their directivity and lower energy consumption compared to radio frequencies.

3. QKD Protocol Adaptation for Space

Adapting QKD Protocols: Protocols like BB84 or its variants need to be adapted for the unique conditions of space. This includes dealing with issues like the Doppler effect, which can alter the frequency of the quantum and classical signals, and the need for precise alignment of the optical systems for successful photon transmission and detection.
Error Correction and Privacy Amplification: The QKD process includes steps to correct errors in the key caused by the quantum transmission’s noise and to enhance the key’s security against potential eavesdropping. These steps are computationally intensive and must be optimized for the ARM-based computers onboard each satellite.

4. Network Architecture and Topology

Mesh Network for Satellites: A mesh network topology can be established among the satellites to enable dynamic routing of quantum and classical information. This flexibility helps maintain communication even if the direct line of sight is temporarily obstructed or if some satellites experience technical issues.
Ground Stations: Integration with ground stations is essential for initial key distribution, system calibration, and potentially as trusted nodes for relaying quantum keys between satellites not in direct line of sight.

5. Software and ARM-Based Implementation

Efficient Software: The ARM-based computers on each satellite need efficient software capable of handling the QKD protocol’s computational requirements, including the generation of random numbers for qubit preparation, signal processing for qubit detection, and the classical post-processing steps of error correction and privacy amplification.
Security and Authentication: The software must also implement robust security measures for the classical communication channels, ensuring that only authenticated satellites can exchange quantum keys.

Implementation Steps

1. Hardware Integration: Develop and integrate quantum communication hardware into the cube satellites, ensuring compatibility with ARM-based computers.
2. Software Development: Create optimized software for the ARM processors to handle the QKD protocol and secure classical communication.
3. Testing and Calibration: Conduct ground-based and initial in-orbit tests to calibrate the quantum communication hardware and validate the software.
4. Deployment: Establish the mesh network among the satellites, initiate the QKD protocols to generate shared secret keys, and start secure communication.

Challenges and Considerations

Technological Development: Miniaturizing quantum communication hardware for cube satellites is an ongoing research area, with significant advances needed to make space-based QKD a reality.
Environmental Factors: The space environment introduces unique challenges, including radiation, microgravity effects on hardware, and the need for precise alignment and stabilization of satellites for optical communication.
Regulatory and Spectrum Issues: Coordination with international space agencies and adherence to regulations governing space and frequency use are necessary.

Using QKD for secure communication between cube satellites represents the cutting edge of quantum communication and space technology. While there are significant challenges to overcome, the potential for establishing unconditionally secure communication networks in space is a compelling aspect of future quantum technologies.

Right now, this is more of a thought experiment. I am collaborating with a few local space clubs to launch a couple of cube satellites to test out this hypothesis. I am also looking at AWS Groundstation service as well as K-Sat service. More on these as I make progress.
